KEY FEATURES AND BENEFITS
GOOD SURGE SUPPRESSORS AS THEY PROVIDE HIGH RESOLUTION
PERFECT REMEDIES FOR ALL TYPE OF ELECTRONIC EQUIPMENTS
DESIGNED WITH COMPLETE PROTECTIONS AGAINST POWER RELATED PROBLEMS
NO SEMICONDUCTORS OR MOVING PARTS USED HENCE VERY HIGH RELIABILITY
OUTPUT VOLTAGE CORRECTION WITH ½ CYCLE (10 MS) FROM NO LOAD TO FULL LOAD FOR SPECIFIED LOAD AND VARIATION
HIGHER INPUT VOLTAGE CONTROL RANGE FOR LOADS LESS THAN RATED LOADS
VERY HIGH LINE TRANSIENT, SPIKE REJECTION CAPABILITY AND EXCELLENT INPUT TO OUTPUT ISOLATION CHARACTERISTICS
* Terms and condition apply
PERFECT REMEDIES FOR ALL TYPE OF ELECTRONIC EQUIPMENTS
DESIGNED WITH COMPLETE PROTECTIONS AGAINST POWER RELATED PROBLEMS
NO SEMICONDUCTORS OR MOVING PARTS USED HENCE VERY HIGH RELIABILITY
OUTPUT VOLTAGE CORRECTION WITH ½ CYCLE (10 MS) FROM NO LOAD TO FULL LOAD FOR SPECIFIED LOAD AND VARIATION
HIGHER INPUT VOLTAGE CONTROL RANGE FOR LOADS LESS THAN RATED LOADS
VERY HIGH LINE TRANSIENT, SPIKE REJECTION CAPABILITY AND EXCELLENT INPUT TO OUTPUT ISOLATION CHARACTERISTICS
* Terms and condition apply
APPLICATIONS
PETROL PUMPS
BIOMEDICAL EQUIPMENTS
DATA PROCESSING EQUIPMENTS
COLOUR LABS
BIOMEDICAL EQUIPMENTS
DATA PROCESSING EQUIPMENTS
COLOUR LABS
TECHNICAL SPECIFICATION
| Model Number | SCV05-180 |
|---|---|
| CAPACITY RATING | 500VA |
| Input Voltage Range | 180 V TO 280 V |
| LINE FREQUENCY | 50 HZ ±1% |
| EFFECT OF FREQUENCY | 1.6% (APPROX) CHANGE IN OUTPUT VOLTAGE FOR EVERY 1% CHANGE IN LINE FREQUENCY |
| OUTPUT VOLTAGE | 220V ±1% |

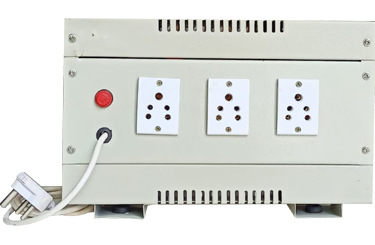

| OUTPUT SOCKET QUANTITY | 3 NOS |
| OUTPUT SOCKET CURRENT RATING | 6 AMP |
| INPUT CORD LENGTH | 1 METER |
| CORRECTION RATE | 250 VOLTS PER SECOND |
| RESPONSE TIME | 30 MILISECONDS |
| Output Wave Form | Sinusoidal |
| Harmonic Distortion | Less than 3 % at full load and rated voltage |
| Wave from distortion | 5% ( aaprox) under full load conditions |
| Output Step Load Response | 2 cycles ( 30 to 40 milliseconds) |
| Regulation ( Load ) | 1.5% against 25% to 100% load |
| Load Power Factor | 0.75% lag to 0.9% lead |
| Audible Noise | 40 to 60 db |
| Efficiency | 90% ( approx.) under full load conditions |
| Efficiency Frequency | 47.5hz to 52.5 hz |
| Enclosure | Powder Coated Siemens Grey, ventilated M.S. Cabinet |
| Transformer Type | Ferro-resonant |
| Windings | Copper |
| Input/output isolation | Very high resulting in suppression of spikes, surges and transients |

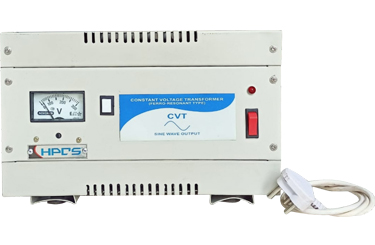

| Front Panel display, indications and control | 65mm Analog Voltmeter ( 0-300V) Output Voltage LED for Input On/Off. Push Button to display output voltage Switch for Input off |
| Protections | Fuse at Input |
| Dimentions ( In MM) | 305*240*180 |
| Weight ( In Kg ) | 11 |
| Ambient Temperature | Temperature 5 to 50ºC |
| Relative Humidity | Rh: 0-95% ( Non Condensing ) |
